Plug For Pluggable Terminal Block

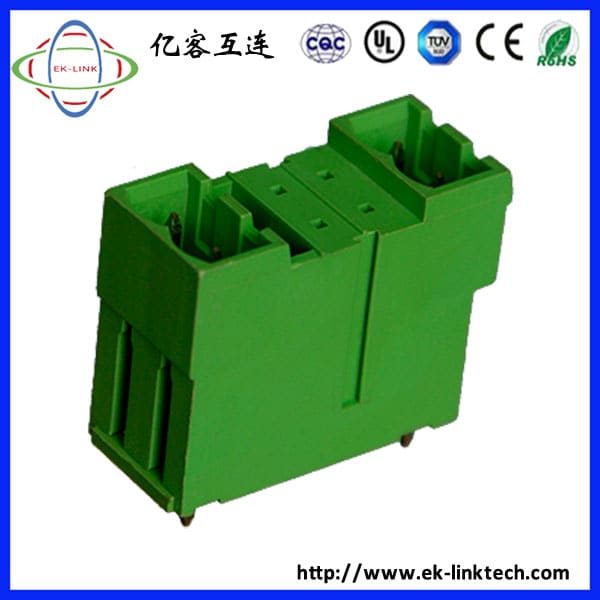

F85-Y-5.0 Plug For Pluggable terminal block connector

Item No.:F85-Y-5.0
Pitch:5.0mm
Poles:2P to 24P
Brand:EK-LINK
Product description: This series is pluggable terminal blocks with many types, which can be made into different combinations and are also provided with 2 main advantages of simple maintenance (Can be pluggable) and reliab
INQUIRY

Hangzhou EK-Link Technology Co.,Ltd was devoted to one-stop services from the products design, research and development, production and sale of various connectors, like PCB fixed type terminal block,pluggable terminal block connector, spring terminal connector ,female header, pin header,screw terminal connector,din rail terminal blocks, electrical terminal block,auto connectors, various of power adapters and so on.

1) We are one professional wire harness and connector manufacturer. Our products can be used in household appliance, industrial control, communication field, automotive and motorcycle wiring.

2) We are producing more than 1000 kinds of terminal blocks for Phoenix contact/Wago/weidmuller/Dinkle/TYCO/AMP/ FCI replacements

3) We accept OEM/ODM design, welcome any customized cable too, whenever you have 100pcs or 100K pcs demand, we will reply and quote you as soon as possible.

F85-Y-5.0 China factory pitch 5.0mm Plug For Pluggable Terminal Block

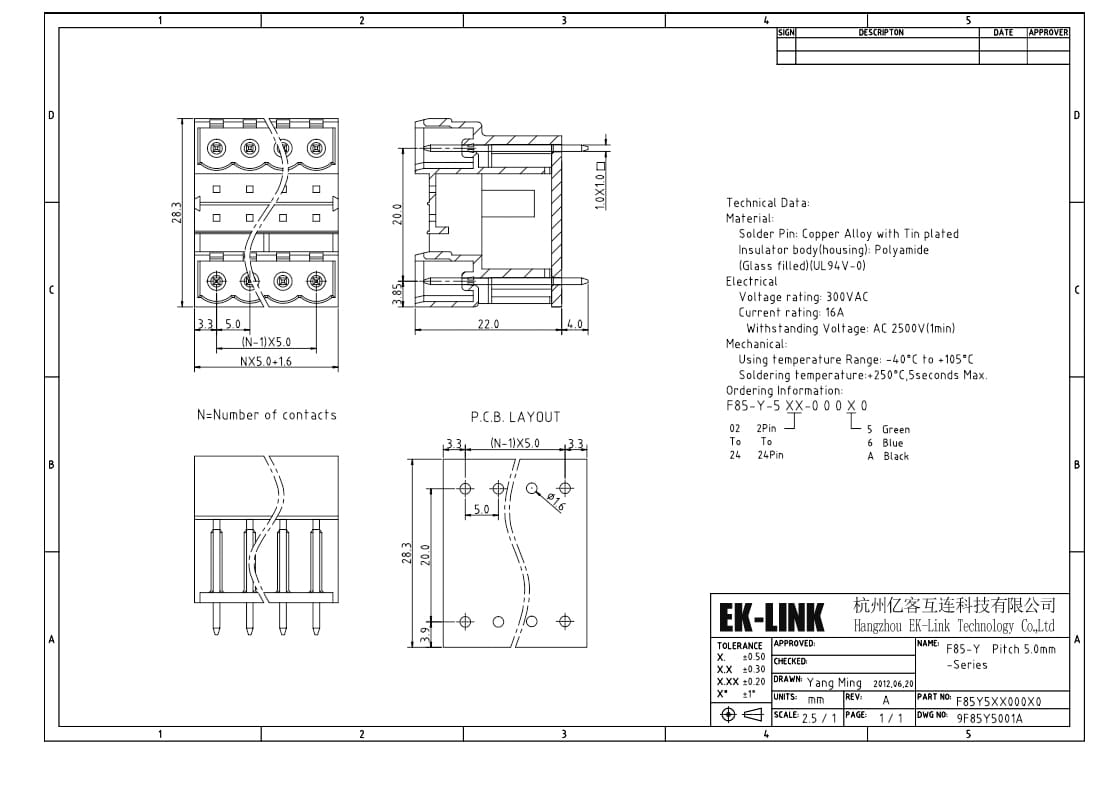

Specifications

Pitch:	5.0mm
Poles:	2P ~24P
Electrical:	UL
Voltage rating :	300V
Current rating:	16A
Operating Temperature:	- 40°C to +105°C
With standing Voltage:	2500VAC

Our Advantages:

1.Professional manufacturer, 100% tested.

2.Customers solutions in days, not weeks.

3. Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.

5.Save much costs, bring more benefit for customer to expand business.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
